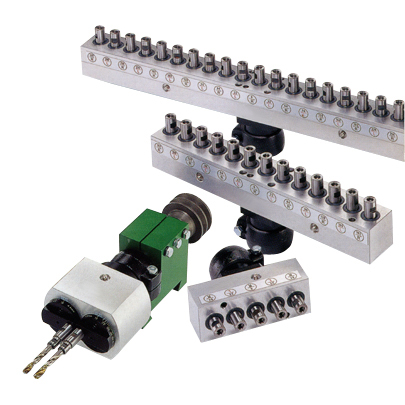

Axis Drill Bits & Gear Heads

HOME > PRODUCTS > Parts and Accessories > Axis Drill Bits & Gear Heads

Axis Drill Bits & Gear Heads

INQUIRY FAVORITES BACK

Product Specifications

Model	Spacing				Weight
Model	Min	Max	Max Capacity	Thread	Weight
GSG-211	14	82	φ10	M8 x 1.25P	2.5kg
GSG-212	32	160	φ15	M8 x 1.25P or M10 x 1.5P	8kg
GSG-213	18	100	φ15	M8 x 1.25P or M10 x 1.5P	3.7kg
GSG-314	14	96	φ10	M8 x 1.25P	3kg
GSG-316	32	192	φ15	M8 x 1.25P or M10 x 1.5P	9kg
GSG-317	25	96	φ15	M8 x 1.25P or M10 x 1.5P	5.1kg
GSG-318	20	78.9	φ10	M8 x 1.25P	3.5kg
GSG-419	32	90	φ15	M8 x 1.25P or M10 x 1.5P	7kg
GSG-420	25	73	φ10	M8 x 1.25P	4.2kg

Model	Spacing			Weight
Model	PH	Max Capacity	Thread	Weight
GSG-2503	25mm*3	φ15	M8 x 1.25P or M10 x 1.5P	1.8kg
GSG-3803	38mm*3	φ20	M8 x 1.25P or M10 x 1.5P	2.5kg
GSG-2205	22mm*3	φ15	M8 x 1.25P or M10 x 1.5P	2.5kg
GSG-2505	25mm*5	φ15	M8 x 1.25P or M10 x 1.5P	2.5kg
GSG-3805	38mm*5	φ20	M8 x 1.25P or M10 x 1.5P	3.5kg
GSG-3203	32mm*3	φ20	M8 x 1.25P or M10 x 1.5P	2kg
GSG-3205	32mm*5	φ20	M8 x 1.25P or M10 x 1.5P	2.8kg
GSG-3209	32mm*9	φ15	M8 x 1.25P or M10 x 1.5P	5kg
GSG-3213	32mm*13	φ15	M8 x 1.25P or M10 x 1.5P	6.5kg
GSG-3217	32mm*17	φ15	M8 x 1.25P or M10 x 1.5P	8.2kg
GSG-3221	32mm*21	φ15	M8 x 1.25P or M10 x 1.5P	10kg
GSG-3227	32mm*27	φ15	M8 x 1.25P or M10 x 1.5P	13.3kg
GSG-3235	32mm*35	φ15	M8 x 1.25P or M10 x 1.5P	17kg
